Detailed Wall Sections

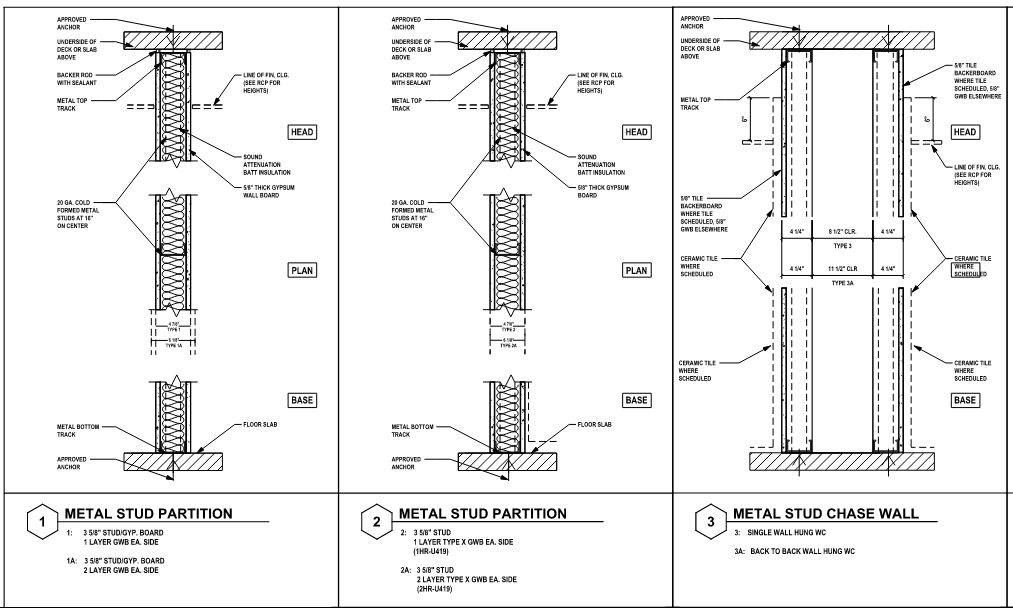

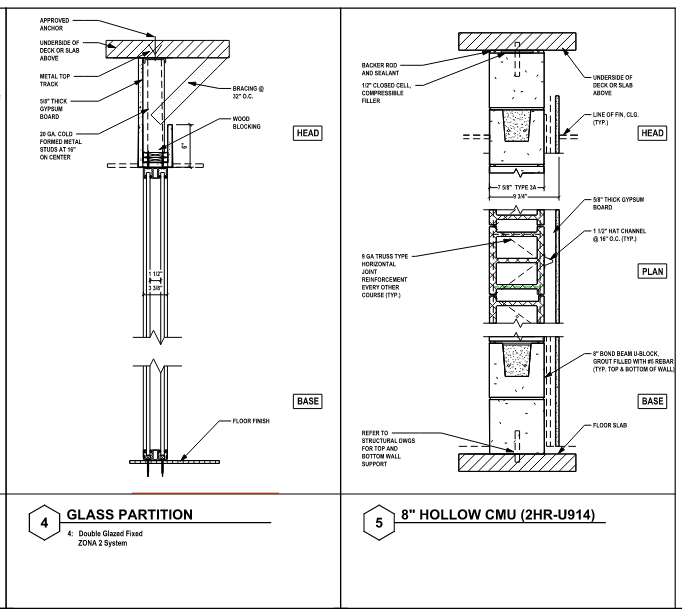

During my internship, I drew a series of detailed wall sections, for a current project. This exercise deepened my understanding of wall assemblies, code compliance, and the coordination required between architectural intent and constructability. I learned how material layers contribute to fire resistance, acoustics, and thermal performance, and gained insight into the real-world standards that guide detailing in professional practice.
Software Utilized: AutoCAD and Revit
